Brief introduction

EP 80V Lithium Battery Series: High-Power Solutions for Heavy-Duty Industrial Equipment

Meta Description: EP Energy’s 80V lithium battery series (410Ah/560Ah) delivers 32.8kWh/44.8kWh rated energy, >2000 cycles, and IP54 protection—ideal for heavy-duty electric forklifts, reach trucks, and industrial material handling.

EP Energy’s 80V Lithium Battery Series is engineered to power heavy-duty industrial electric equipment, including large forklifts, reach trucks, and material handling machinery. Available in two high-capacity configurations—410Ah (32.8kWh) and 560Ah (44.8kWh)—this series combines robust performance, long cycle life, and maintenance-free operation to replace traditional lead-acid batteries, enabling uninterrupted, high-productivity operations in demanding industrial environments.

Core Advantages of the 80V Lithium Battery Series

⚡ High Power & Energy Density for Heavy-Duty Performance

410Ah Model: Delivers 32.8kWh of rated energy with a 410A (1C) max continuous discharge current, providing consistent power for mid-to-heavy electric forklifts and reach trucks.
560Ah Model: Offers 44.8kWh of rated energy with a 560A (1C) max continuous discharge current, ideal for the most demanding heavy-duty industrial applications, ensuring reliable performance under continuous load.
Flexible Charging: Both models support 150A standard charging and an optional 200A fast charging, enabling quick energy replenishment and opportunity charging during breaks to minimize downtime.

🛠️ Long Cycle Life & Zero Maintenance

>2000 cycles (≥80% capacity): Delivers double the lifespan of lead-acid batteries, reducing replacement frequency and total cost of ownership (TCO).
Maintenance-free operation: Eliminates the need for water refilling, acid handling, or ventilation, cutting labor costs and safety risks associated with traditional battery upkeep.
Consistent performance: Maintains stable power output throughout its lifecycle, even under the rigorous demands of multi-shift industrial operations.

🛡️ Rugged Durability & All-Environment Reliability

IP54 protection class: Resists dust and water splashes, making it suitable for outdoor and harsh industrial environments, including manufacturing plants, warehouses, and logistics hubs.
Robust construction: Compact, heavy-duty design (1028×855×784 mm / 1028×999×784 mm) with a weight range of 1558–2188 kg ensures stability and durability in heavy-duty equipment.
Wide temperature adaptability: Engineered to perform reliably in diverse operating conditions, from cold storage warehouses to hot industrial facilities.

📊 Intelligent BMS & Real-Time Monitoring

An advanced Battery Management System (BMS) safeguards the battery against overcharging, deep discharging, and temperature extremes, ensuring safe, stable operation. Operators can monitor key metrics—including state of charge, temperature, and performance—in real time, enabling proactive fleet management and minimizing unplanned downtime.

Key Technical Specifications

表格

Parameter	410Ah Model	560Ah Model
Nominal Voltage	80V	80V
Nominal Capacity (5hr rate)	410Ah	560Ah
Rated Energy	32.8kWh	44.8kWh
Max Continuous Discharge Current	410A (1C)	560A (1C)
Charging Current	150A (Standard), 200A (Optional)	150A (Standard), 200A (Optional)
Cycle Life	>2000 cycles (≥80% capacity)	>2000 cycles (≥80% capacity)
Protection Class	IP54	IP54
Dimension	1028×855×784 mm	1028×999×784 mm
Weight	1558–1920 kg	1850–2188 kg

Ideal Application Scenarios

The 80V Lithium Battery Series is designed for the most demanding industrial material handling applications, including:

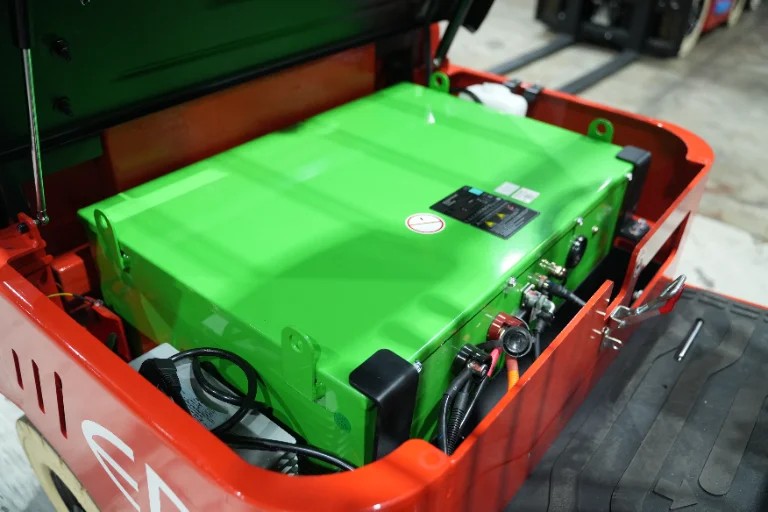

Heavy-duty electric forklifts: Powering large-capacity forklifts in manufacturing, logistics, and port operations.
High-reach trucks: Enabling reliable performance in tall-rack warehouses and distribution centers.
Industrial material handling machinery: Supporting heavy-duty equipment in manufacturing plants, steel mills, and construction sites.
Multi-shift operations: Delivering uninterrupted power for 24/7 logistics and production environments.
Cold storage facilities: Providing maintenance-free, reliable power in temperature-controlled warehouses.

Why Choose EP Energy’s 80V Lithium Battery Series?

As a global leader in lithium-ion technology with 17+ years of expertise, 600,000+ batteries deployed across 136+ countries, and a focus on industrial energy solutions, EP Energy designs the 80V series to meet the unique needs of heavy-duty material handling fleets:

Heavy-duty performance: High power and energy density for the most demanding industrial applications.
Cost-effective: Long cycle life and zero maintenance reduce TCO for industrial fleets.
Safety-engineered: Intelligent BMS and IP54 protection ensure safe, reliable operation.
Proven reliability: Backed by EP Energy’s global manufacturing quality and localized service network.
Future-proof: Seamlessly replaces lead-acid batteries, enabling a transition to sustainable, efficient power.
