Brief introduction

EPGW2/3/6/9 Power Distribution Cabinets: Centralized AC Low-Voltage Energy Management for C&I Storage Systems

Meta Description: EP Energy’s EPGW2/3/6/9 power distribution cabinets deliver 220kW-990kW centralized energy management, supporting 1-9 EPES233 units, peak shaving, PV storage & demand response for industrial energy systems.

EP Energy’s EPGW2/3/6/9 Power Distribution Cabinets are engineered as the core centralized energy management solution for commercial and industrial (C&I) energy storage systems, offering a scalable 220kW to 990kW AC low-voltage output for seamless power distribution, control and optimization. Designed to pair perfectly with EP’s EPES233 energy storage cabinets (supporting up to 9 units in flexible deployment), this rugged, high-performance cabinet series enables critical energy management functions including peak shaving, PV storage, time-of-use (TOU) optimization, demand response and anti-reflux protection—becoming the indispensable “nerve center” for integrated C&I energy storage and grid systems.

Core Advantages of EPGW Power Distribution Cabinets

⚡ Flexible Deployment & Scalable Power

Available in four tailored models—EPGW2 (220kW)、EPGW3 (330kW)、EPGW6 (660kW)、EPGW9 (990kW)—the series scales effortlessly to match the energy needs of small to large C&I facilities, from commercial complexes to industrial parks. It supports 1-9 EPES233 energy storage cabinet units in flexible parallel deployment, with a maximum combined power of 990kW, allowing businesses to expand their energy storage infrastructure phased and align capacity with growing power demands—no full system redesign required. All models share a unified appearance style with EPES233, ensuring seamless on-site integration and a streamlined installation layout.

📊 Complete Functionality for Intelligent Energy Management

The EPGW Series is a one-stop solution for C&I energy control, integrating all core functions needed for modern energy storage systems: anti-reflux protection, peak shaving, PV storage, TOU optimization and demand response. It also features built-in electrical billing and metering capabilities, paired with EP’s cloud EMS (Energy Management System) for real-time data statistics, energy consumption analysis and intelligent power scheduling. This centralized management eliminates the need for separate control and metering equipment, simplifying system operation and enabling data-driven energy cost optimization for businesses.

🔩 High Performance & Industrial-Grade Reliability

Built for 24/7 continuous industrial operation, the EPGW Series features H-level breaking capacity for all main and branch breakers, with a 100kA rated limit short-circuit breaking capacity (Icu) and 70kA rated operating short-circuit breaking capacity (Ics) for the EPGW3/6/9 models—ensuring stable power distribution even under grid fault and short-circuit conditions. A 40kA Imax surge protection device (SPD) is integrated as standard, safeguarding the entire energy storage system from grid voltage surges and lightning strikes, and protecting valuable storage and power equipment from damage.

🌿 Outdoor-Ready Durability & Adaptability

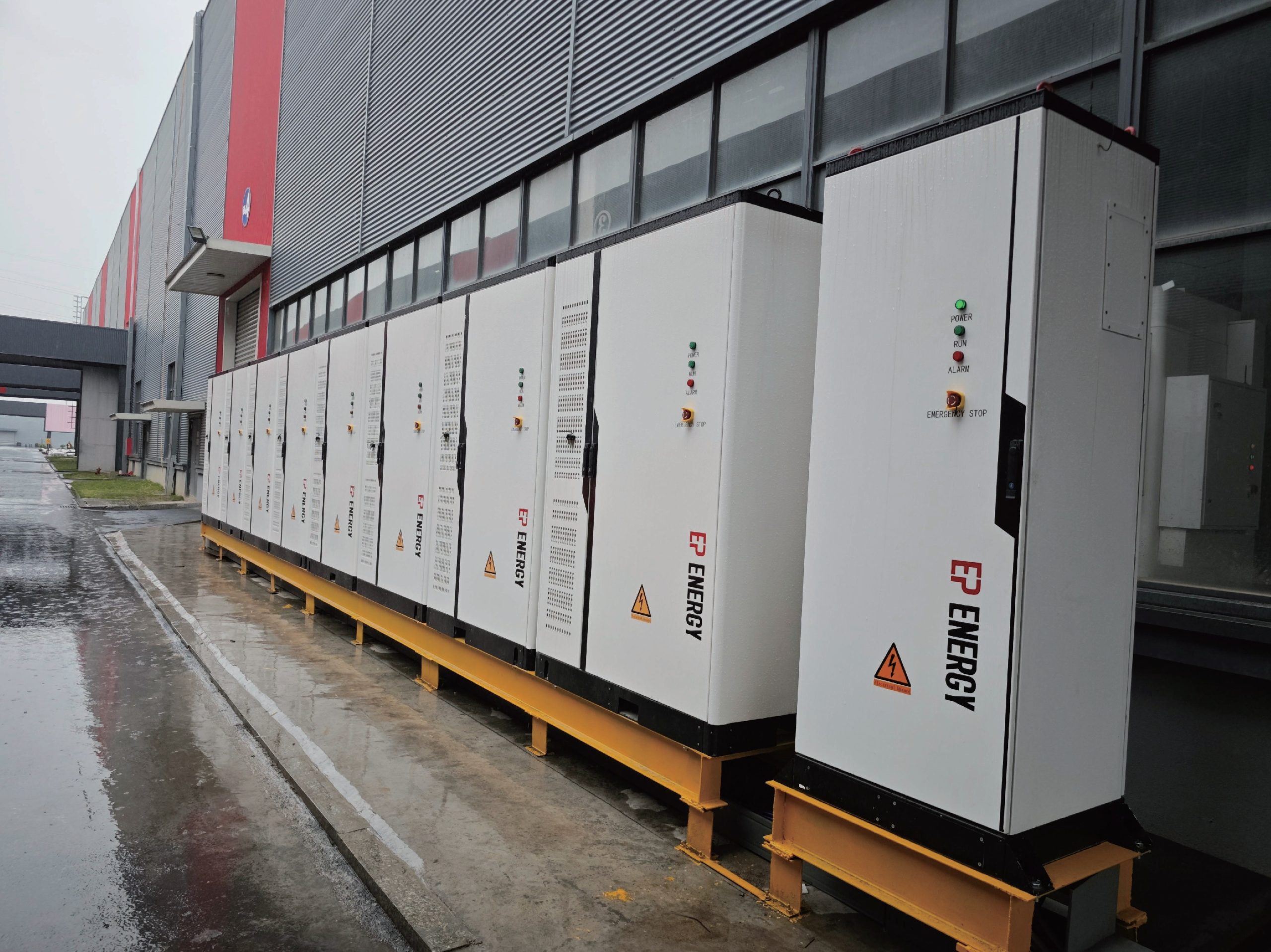

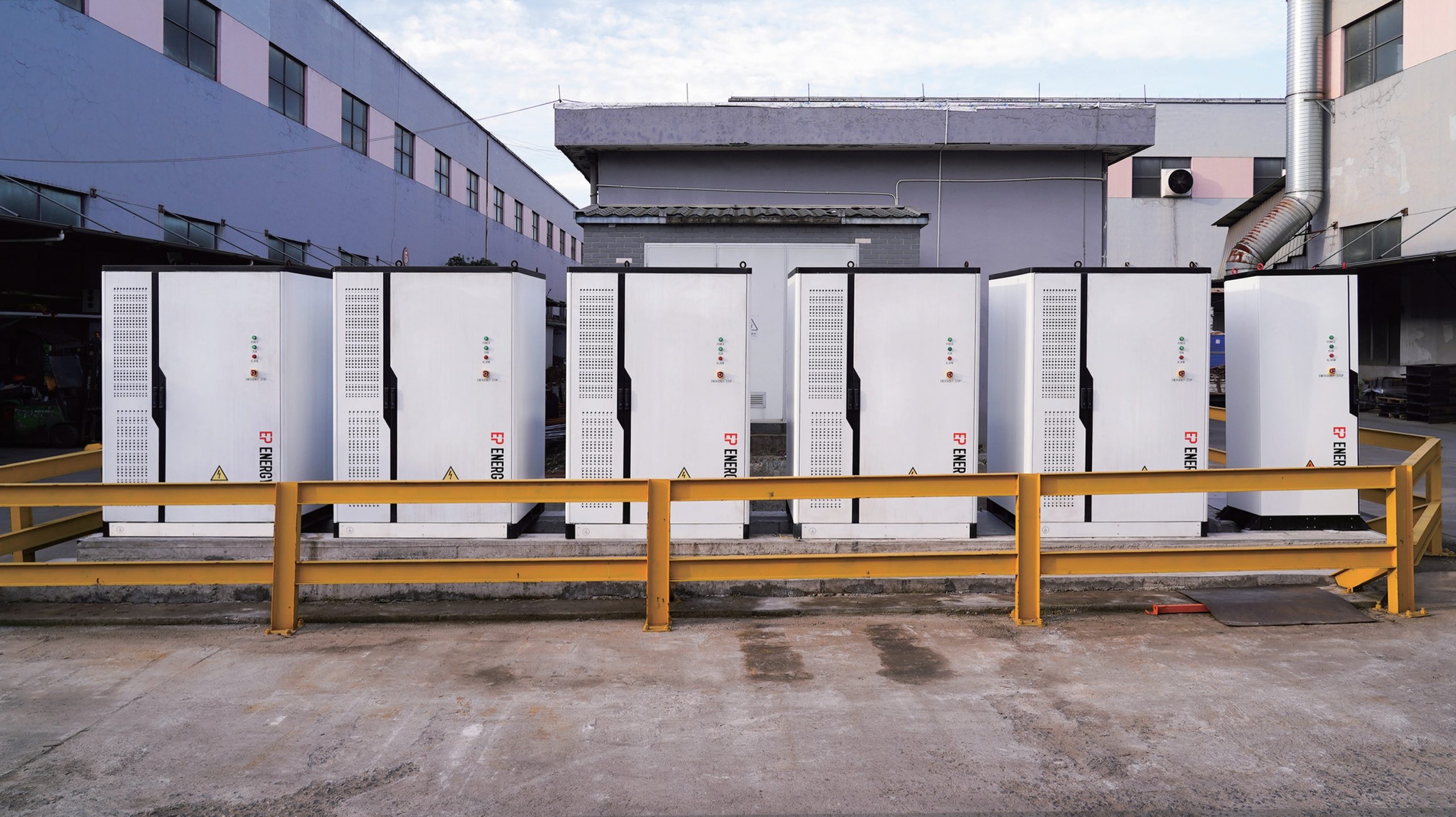

Engineered for the diverse operating environments of C&I facilities, the EPGW Series boasts a high IP protection rating that supports direct outdoor installation, eliminating the need for dedicated indoor equipment rooms and reducing on-site construction costs. Its robust build resists dust, water and industrial environmental wear, while seamless compatibility with EP’s EPES233 liquid-cooled energy storage cabinets ensures the entire energy storage and distribution system operates in synergy—whether deployed in factories, commercial complexes, petrol stations or solar PV parks.

🛠️ Easy Operation & Low Maintenance

Designed with user-centricity in mind, the EPGW Series features a modular internal design for quick component access and maintenance, minimizing system downtime for repairs or upgrades. Its integration with EP’s cloud EMS enables remote real-time monitoring of power distribution status, breaker operation and energy flow data, with alarm notifications for abnormal conditions—allowing operators to troubleshoot and manage the system from any location, reducing on-site maintenance labor and costs. The standardized connection interface with EPES233 also speeds up on-site installation and commissioning, cutting project timelines significantly.

Key Technical Specifications of EPGW Series

表格

Feature	EPGW2	EPGW3	EPGW6	EPGW9
Nominal Voltage	230/400 Vac, 3W+N+P	230/400 Vac, 3W+N+P	230/400 Vac, 3W+N+P	230/400 Vac, 3W+N+P
Rated Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Rated Power	220 kW	330 kW	660 kW	990 kW
Rated Current	318 A	476 A	953 A	1,429 A
Main Breaker Quantity	/	1 PCS	2 PCS	3 PCS
Breaking Capacity Level	H-level	H-level	H-level	H-level
Rated Current (Main Breaker)	/	630 A	630 A	630 A
Rated Limit Short-circuit Breaking Capacity Icu	/	100 kA	100 kA	100 kA
Rated Operating Short-circuit Breaking Capacity Ics	/	70 kA	70 kA	70 kA
Branch Breaker Quantity	2 PCS	3 PCS	6 PCS	9 PCS
Breaking Capacity Level (Branch Breaker)	H-level	H-level	H-level	H-level

Ideal Application Scenarios

The EPGW Series’ scalable power, centralized management and seamless EPES233 compatibility make it the perfect central power distribution solution for all C&I energy storage systems, including:

• Factories & Warehouses: Centralized control of on-site energy storage and PV systems, peak shaving to reduce demand charges, and demand response for grid auxiliary services.
• Commercial Complexes & Hotels: Unified energy management for building load, PV storage and backup power, TOU optimization to cut electricity costs during peak pricing hours.
• Petrol Stations & EV Ch arging Hubs: Power distribution for energy storage and EV fast charging systems, anti-reflux protection and peak shaving to avoid grid overload from high-power charging.
• Solar PV Parks & C&I Renewable Projects: Integration of PV generation and energy storage, centralized metering and power scheduling to maximize renewable self-consumption.
• Industrial Parks & Logistics Hubs: Scalable power distribution for multi-unit energy storage systems, supporting the collective energy management of multiple on-site businesses.
• Hospitals & Educational Institutions: Reliable centralized power distribution for critical load backup power and green energy storage systems, ensuring uninterrupted power supply.

Why Choose EP Energy’s EPGW Power Distribution Cabinets?

As a global leader in lithium-ion energy storage with 17+ years of lithium technology expertise, 600,000+ batteries deployed across 136+ countries and a complete C&I energy storage product ecosystem, EP Energy backs the EPGW Series with unrivaled system compatibility, reliability and global support:

• Seamless Ecosystem Compatibility: Co-designed with EPES233 energy storage cabinets for perfect synergy, ensuring the entire energy storage and distribution system operates with high efficiency and low fault rate—no third-party compatibility issues.
• International Quality Standards: Built to strict global industrial standards, with the same rigorous quality control as EP’s energy storage products, ensuring long-term reliable operation for C&I facilities.
• Localized Global Service Network: EP’s local offices, warehouses and technical teams in the US, Belgium, Brazil, Malaysia and more provide responsive on-site installation, commissioning, spare parts supply and maintenance support.

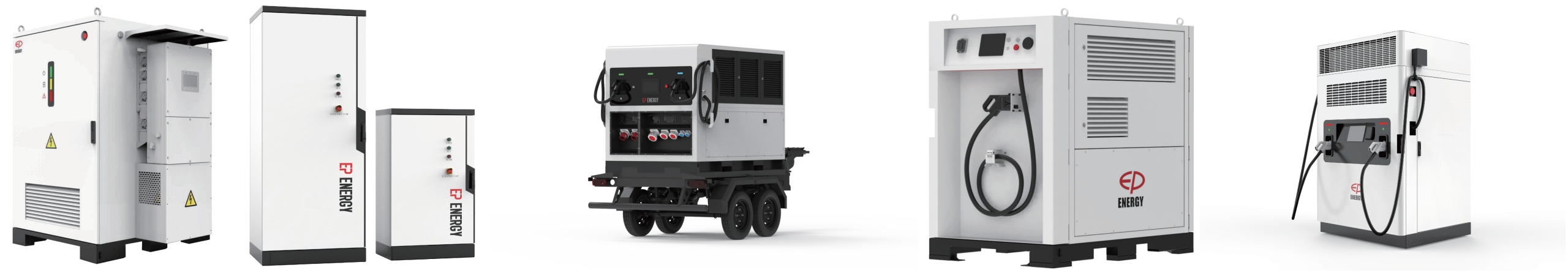

• End-to-End C&I Energy Solutions: EP Energy offers a complete product portfolio (EPES233/261L, EPGW, cloud EMS) and one-stop service from demand analysis to system design, installation and operation—simplifying project execution for businesses.
• Scalable & Future-Proof: Phased deployment support allows businesses to expand energy storage capacity as needed, while cloud EMS integration enables easy system upgrades for new energy management functions.

The Central Nerve Center of Your C&I Energy Storage System

The EPGW Series Power Distribution Cabinets are more than just AC low-voltage distribution equipment—they’re the brain of your C&I energy storage system, enabling centralized, intelligent and scalable management of all your energy assets. Paired with EP’s EPES233 energy storage cabinets, it creates a fully integrated energy solution that optimizes power costs, maximizes renewable energy use and ensures reliable power distribution for your business.

For commercial and industrial facilities looking to build a flexible, efficient and future-proof energy storage system, the EPGW Series is the indispensable centralized power management solution—engineered for synergy, performance and scalability.

EP Energy: Tailored energy storage and distribution solutions, powering smarter C&I energy management.
