EPPS210-M Storage Charging Station: 240kW/217kWh Towable Mobile Energy Hub for Off-Grid Power & Fast EV Charging

Meta Description: EP Energy’s EPPS210-M is a 240kW/217kWh towable storage charging station with 5-min quick EV charging (110km range), smart cloud control & all-in-one AC/DC input—ideal for off-grid power, mobile EV charging and on-site energy needs.

EP Energy’s EPPS210-M Storage Charging Station redefines mobile energy flexibility as a towable, all-in-one LFP (Lithium Iron Phosphate) power hub, delivering 240kW on-grid/200kW off-grid DC output and 217kWh nominal energy for seamless off-grid power supply and ultra-fast EV charging. Engineered with 5-minute quick charging that delivers 110km of EV range, smart cloud control and multi-source input compatibility, this rugged towable unit is the ultimate solution for off-grid construction, mobile EV charging hubs, emergency power supply, outdoor events and all on-the-go energy demands—blending portability, high performance and intelligent management in one compact design.

Core Advantages of EPPS210-M Storage Charging Station

🚛 Effortless Mobility & Rapid Deployment

Built as a fully towable unit, the EPPS210-M features a compact, transportable design (1498×2400×1678mm without trailer, ~2700kg weight) that can be easily moved across all terrains—from construction sites and remote industrial areas to event venues and roadside charging points. No complex on-site installation is required: simply tow, position and connect loads for instant power, making it a plug-and-play solution for temporary and mobile energy needs with zero downtime for deployment.

⚡ Ultra-Fast EV Charging & High-Power Output

The EPPS210-M delivers industry-leading 5-minute quick charging that provides 110km of EV driving range, with a maximum 240kW DC output (on-grid) and 200kW DC output (off-grid) via dual CCS2 charging connectors. Its 217kWh LFP battery capacity ensures long-lasting power for continuous EV charging and off-grid load supply, while a wide 200-1000Vdc output voltage range is compatible with all electric vehicles, industrial EV equipment and heavy-duty electric trucks—eliminating compatibility issues for universal use.

🔌 All-in-One Energy Hub, Multi-Source Compatibility

Designed as a versatile all-in-one power hub, the unit supports both AC and DC input (grid mode & generator mode) with a max 86kW AC input (125A industrial socket) and 200A DC input (540-788.4Vdc), enabling flexible energy replenishment from the grid, diesel generators or other renewable power sources. It features multi-output sockets and dual CCS2 charging ports, meeting simultaneous power needs for off-grid equipment and EV charging—replacing multiple separate devices with a single integrated solution.

☁️ Smart Cloud Control & Intuitive HMI

Equipped with professional smart cloud control and an easy-to-use human-machine interface (HMI), the EPPS210-M enables real-time remote monitoring, data tracking and intelligent power management—including charge/discharge scheduling, load control and battery status monitoring. Users can adjust energy settings, view operational data and troubleshoot remotely from any device, optimizing energy utilization and reducing on-site management costs. The intuitive HMI also allows for simple on-site operation, with no professional technical training required.

🛡️ Rugged Durability & All-Environment Performance

Engineered for harsh outdoor and mobile use, the EPPS210-M features a robust build with IP54 system ingress protection and IP67 battery pack protection, resisting dust, water splashes and rough working conditions. It holds a C4 anti-corrosion rating, suitable for coastal high-salt-fog environments, and operates in a wide -20℃ to 60℃ temperature range (minor derating above 45℃). Powered by high-quality 314Ah LFP cells and an integrated liquid cooling & heating system, the unit maintains optimal battery temperature and performance for reliable operation in extreme cold, heat and all climate conditions.

Key Technical Specifications

AC/DC Input

• AC Input: 400Vac 3W+N+PE, 50/60Hz, max 86kW power, 125A industrial socket (Grid/Generator Mode)
• DC Input: 695.5Vdc nominal (540-788.4Vdc range), max 200A current

DC Output (EV Charging)

• Max Power: 240kW (On-Grid) / 200kW (Off-Grid)
• Voltage Range: 200~1000Vdc
• Max Current: 250A
• Charging Connectors: 2 × CCS2

Core Battery & System Specs

• Cell Type: LFP (Lithium Iron Phosphate), 314Ah nominal capacity
• Nominal Energy: 217kWh
• Thermal Management: Liquid Cooling & Heating
• Protection Rating: IP54 (System) | IP67 (Battery Packs)
• Anti-Corrosion Grade: C4
• Dimensions (W×D×H): 1498×2400×1678mm (without trailer)
• Weight: ~2700kg
• Operating Temp: -20℃ ~ 60℃ (>45℃ derating)
• Altitude: <2000m (derating above 2000m)
• Humidity: 5~95%RH (no condensation)

Ideal Application Scenarios

The EPPS210-M’s towable design, high-power output and multi-functionality make it the perfect mobile energy solution for diverse on-the-go and off-grid scenarios:

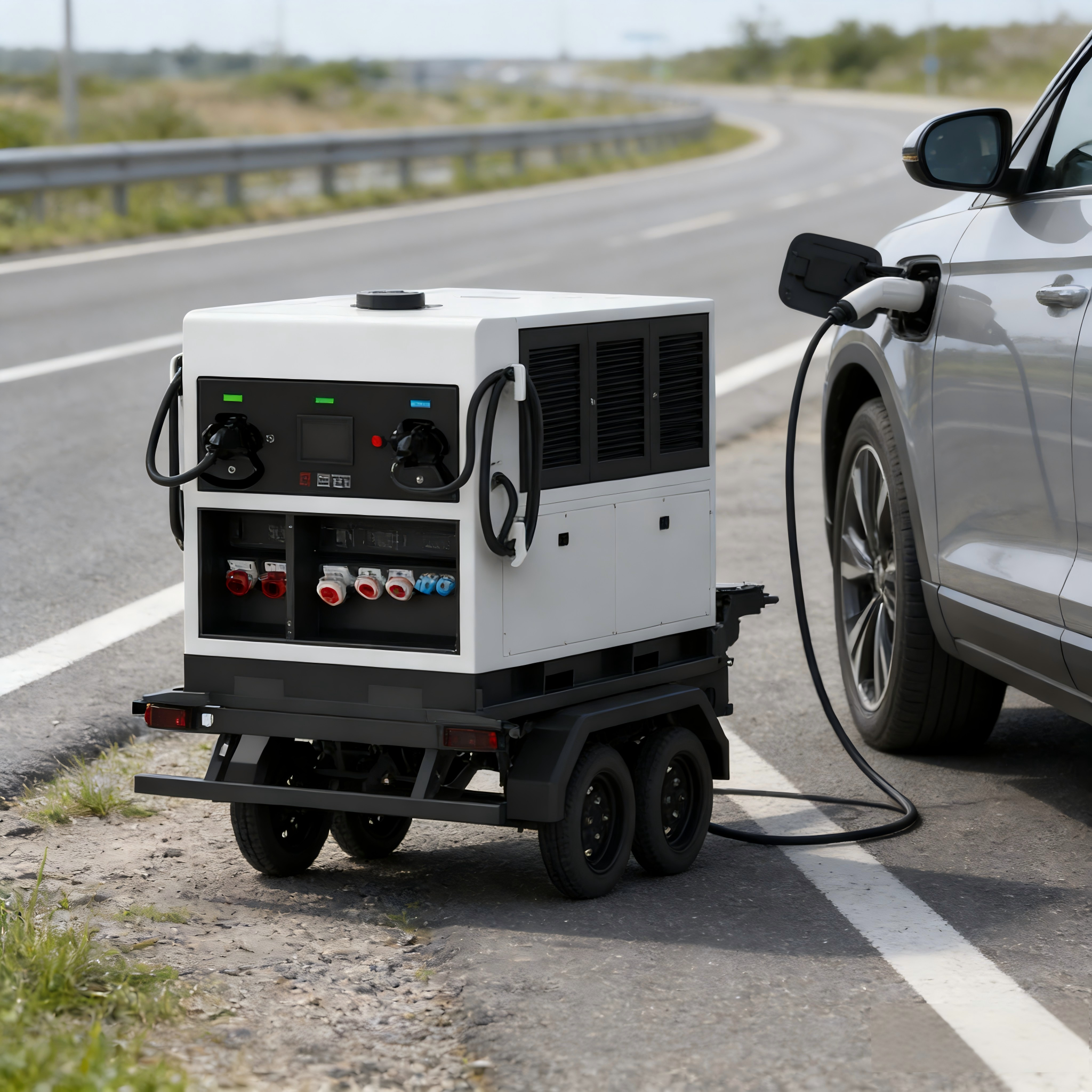

• Mobile EV Charging Hubs: Temporary charging points for outdoor events, parking lots, tourist attractions and remote areas with no fixed charging infrastructure.
• Roadside EV Emergency Charging: Rapid charging for stranded electric vehicles, providing on-demand roadside assistance and eliminating EV range anxiety.

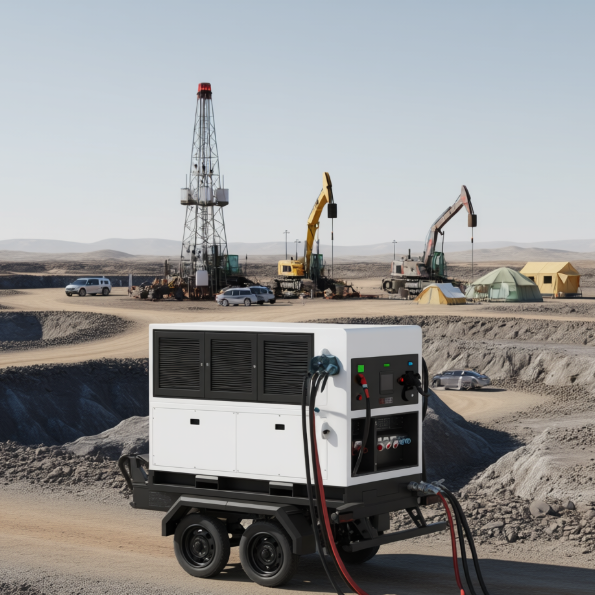

• Off-Grid Construction & Industrial Power: Powers heavy construction equipment, remote mining operations and industrial job sites with no grid access—zero noise, zero emissions.
• Outdoor Events & Temporary Facilities: Reliable power for music festivals, sports events, mobile medical clinics and disaster relief camps, supporting lighting, HVAC and equipment loads.
• Commercial Backup Power: Emergency mobile power for shopping malls, supermarkets and small industrial parks during grid outages or maintenance.
• Agricultural & Rural Off-Grid Power: Supplies energy for remote farm operations, irrigation systems and rural infrastructure projects with limited grid connectivity.

Why Choose EP Energy’s EPPS210-M Storage Charging Station?

Backed by EP Energy’s 17+ years of lithium technology expertise, 600,000+ batteries deployed across 136+ countries and global international certifications (CE, UL, TÜV, UN38.3), the EPPS210-M delivers uncompromising reliability and value with:

• Global Compliance: Meets strict international safety and performance standards, suitable for deployment in all global markets and regional grid regulations.
• Localized Global Support: EP’s worldwide service network (US, Belgium, Brazil, Malaysia, Thailand, etc.) provides responsive on-site support, spare parts supply and technical training.
• LFP Cell Reliability: High-performance 314Ah LFP cells ensure long cycle life, thermal stability and no thermal runaway risks—critical for mobile and outdoor operation.
• Low Total Cost of Ownership: All-in-one design reduces equipment and installation costs; smart cloud control cuts management labor; towable mobility eliminates the need for fixed power infrastructure.
• Sustainable Clean Energy: Replaces fossil fuel generators with zero-emission LFP battery power, reducing carbon footprints and aligning with global sustainability goals.

Your Towable Energy Solution, Anywhere & Anytime

The EPPS210-M Storage Charging Station is more than a mobile charging unit—it’s a versatile, high-power towable energy hub that delivers ultra-fast EV charging and reliable off-grid power, wherever and whenever you need it. Its effortless mobility, smart management, rugged durability and universal compatibility make it the ideal choice for mobile EV charging, off-grid construction, emergency power and all on-the-go energy needs—empowering your projects with flexible, clean and high-performance mobile power.

EP Energy: Tailored energy storage solutions, engineered for mobility and performance.
