Brief introduction

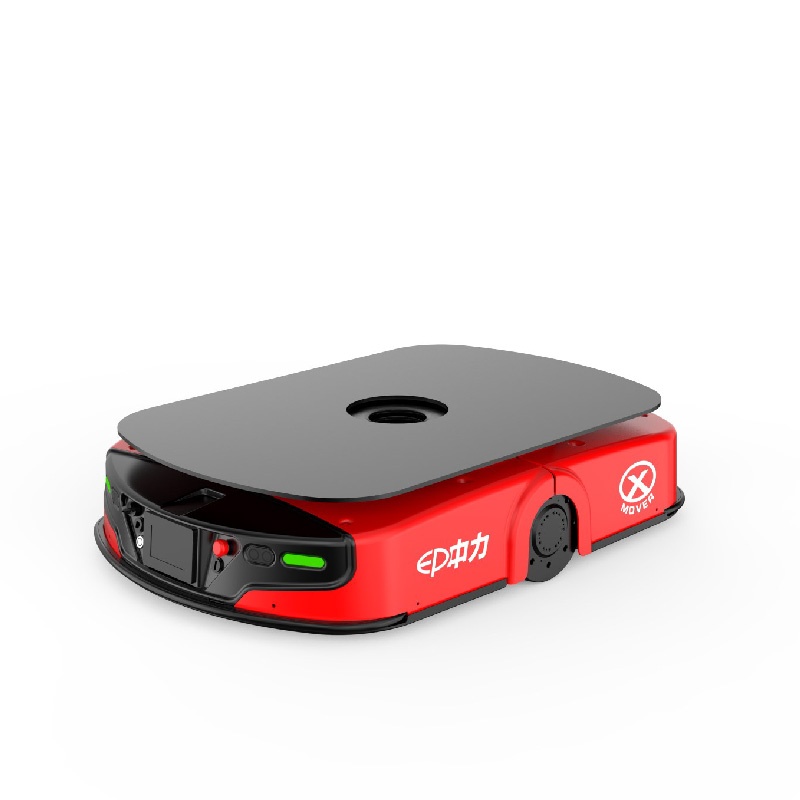

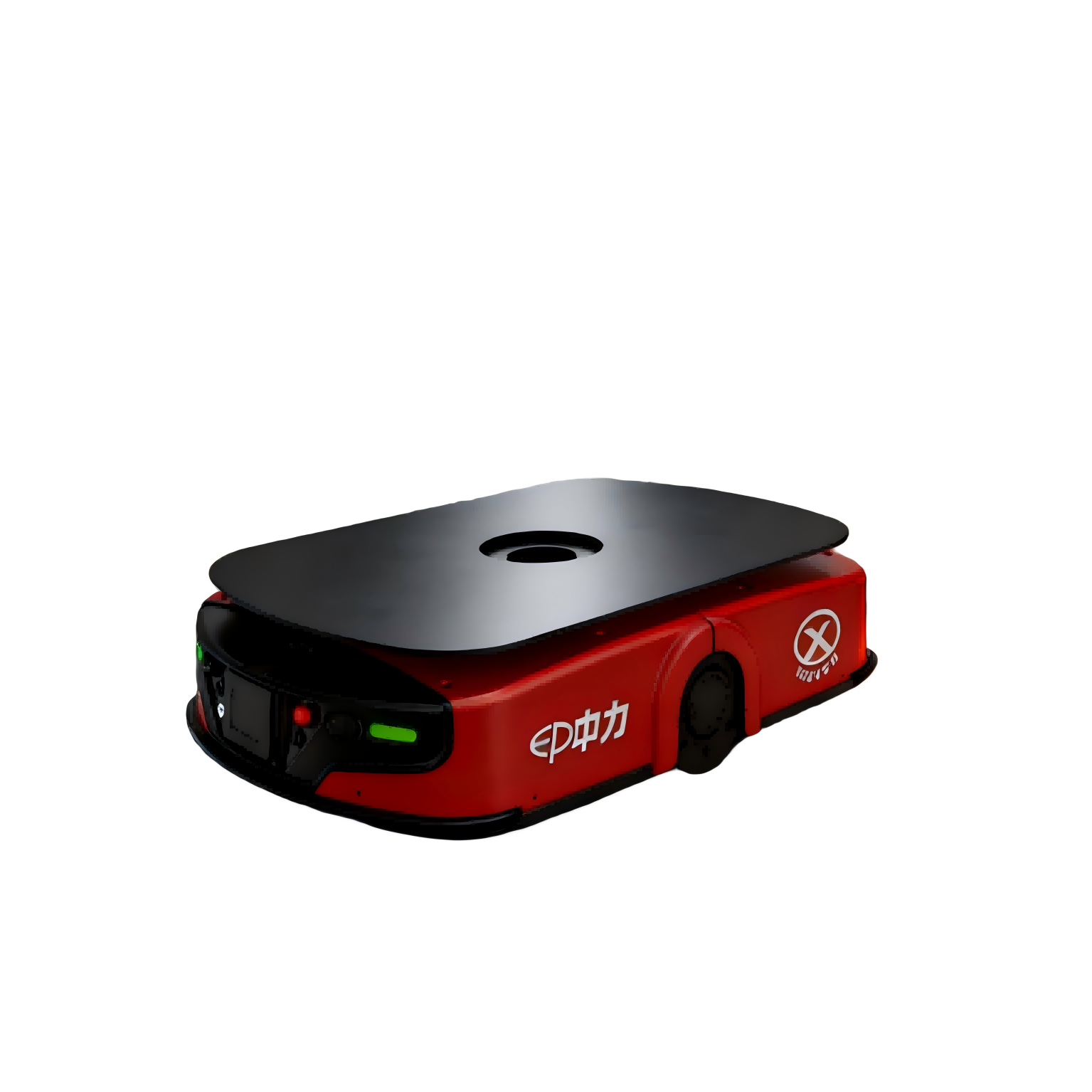

EP XCD101 Undercarriage Lifting AGV: Compact & Efficient Smart Material Handling Solution

Core Positioning: The EP XCD101 is an undercarriage lifting AGV specifically designed for narrow-aisle and dense storage scenarios. With its compact body and zero-turn capability, it achieves efficient multi-point to multi-point material transport and seamless docking with automated equipment.

---

Core Application Scenarios ✨

1. Narrow-Aisle & Dense Storage: Its compact body and zero-turn radius make it perfectly suited for navigating narrow spaces in warehouses and workshops, enabling efficient shuttle operations.
2. Multi-Point to Multi-Point Long-Distance Transport: Supports multi-task scheduling, capable of completing cross-regional and multi-site material handling within complex factory premises.
3. Automated Equipment Docking: Can seamlessly dock (optional) with production lines, elevators, automatic doors, and other automated equipment to achieve fully unmanned workflow.

---

Functional & Structural Highlights 🔧

• Basic Functions: Supports manual/auto/semi-auto operation, with practical features like fault self-diagnosis and battery level display.
• Navigation: Adopts QR Code + Laser SLAM hybrid navigation, combining flexibility with high-precision positioning.
• Safety Performance: Equipped with multiple safety protections including laser radar, safety bumpers, emergency stop buttons, and audible/visual alarms, ensuring safe human-machine collaborative operations.
• System Integration: Can seamlessly integrate with mainstream warehouse and production management systems such as WMS, MES, and ERP.

---

Key Technical Specifications 📊

表格

Item	Specification
Rated Load Capacity	1000 kg
Self-Weight	235 kg
Drive Type	Differential Drive
Navigation Method	QR Code + Laser SLAM
Battery	24V / 20Ah Lithium Battery
Continuous Working Time	8 Hours
Maximum Travel Speed	1.5 m/s
Maximum Lifting Height	60 mm
Overall Dimensions (L×W×H)	1165×815×290 mm
Turning Radius	0 mm (Zero-turn)

---

Why Choose the EP XCD101?

• High Space Utilization: Its compact body and zero-turn radius maximize storage space utilization, making it ideal for high-density storage environments.
• Flexible & Efficient: Hybrid navigation and multi-task scheduling capabilities allow it to quickly adapt to changing production and logistics needs.
• Safe & Reliable: Multiple safety protection designs ensure stable operation in human-machine hybrid environments.
• Seamless Integration: Strong system integration capabilities help enterprises quickly achieve intelligent and unmanned upgrades.
