Technical Parameter
feature
| 1.1 |

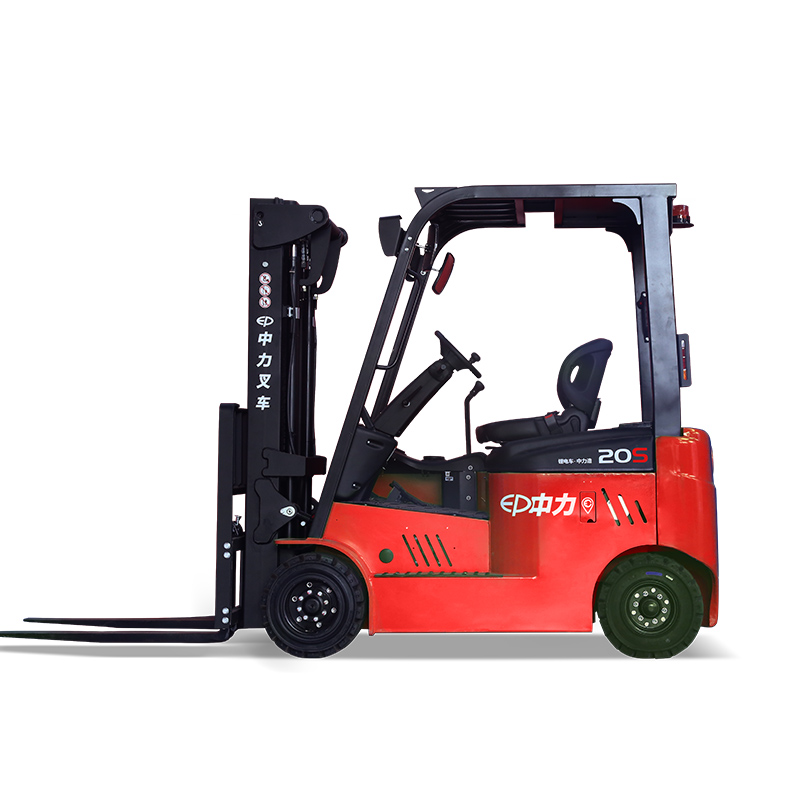

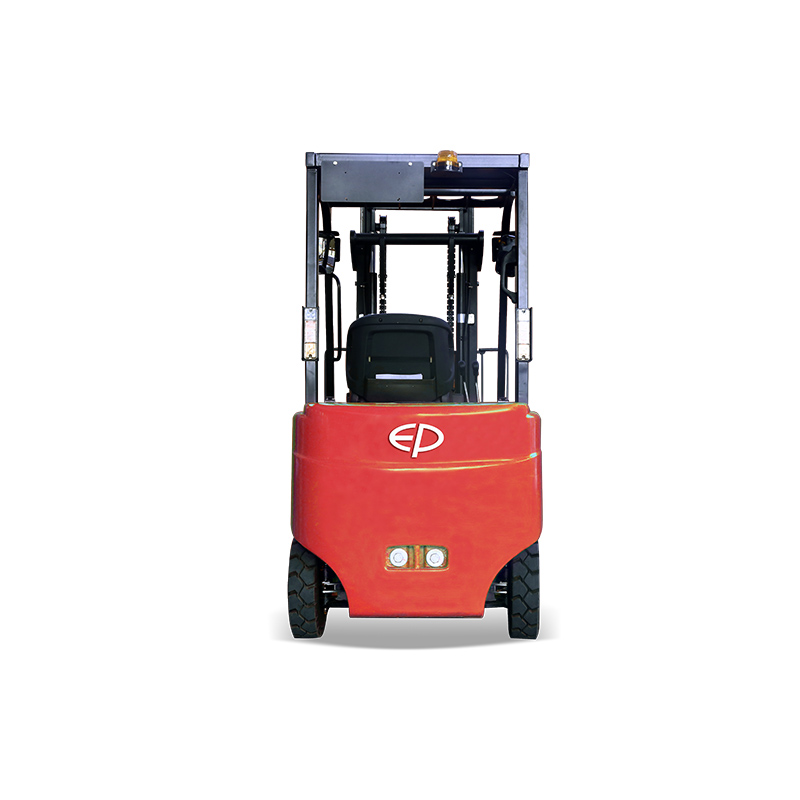

brand |
|
Zhongli |
| 1.2 |
model |
|
CPD20L1S |
| 1.3 |
Power type |
|
electric |
| 1.4 |
Operation Type |
|
Car style |
| 1.5 |
Load Rated |
Q (kg) |
2000 |
| 1.6 |
Load center distance |
c (mm) |
500 |
weight
| 2.1 |
Self-weight (including battery) |
kg |
3280 |
Tires, chassis
| 3.1 |
Tire type, drive wheel/load wheel (steering wheel) |
|
Solid fetus |
size
| 4.4 |
Standard gantry maximum lifting height |
h3 (mm) |
3000 |
| 4.7 |
Top (cockpit) height |
h6 (mm) |
2080 |
| 4.20. |
Length of the vertical plane of the arrival fork |
l2 (mm) |
2245 |
| 4.21 |
Overall width |
b1/ b2 (mm) |
1130 |
| 4.34.1 |
Right angle stacking channel width (pallet is 1000 length × 1200 width) |
Ast (mm) |
3685 |
| 4.34.2 |
Right angle stacking channel width (pallet is 800 width x 1200 length) |
Ast (mm) |
3885 |
| 4.35 |
Turning radius |
Wa (mm) |
2080 |
Performance parameters
| 5.1 |
Walking speed, full load/no load |
km/ h |
15/16 |
| 5.8 |
Maximum climbing, full/unloaded |
% |
16/20 |
Electric motor, power unit
| 6.4 |
Battery voltage/nominal capacity |
V/ ah |
48V380AH |
