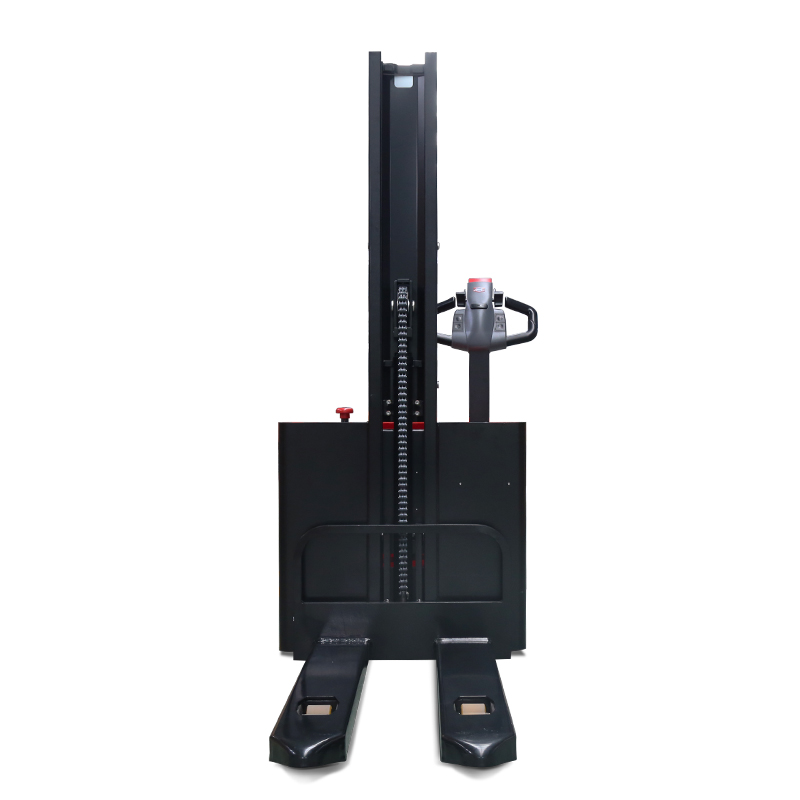

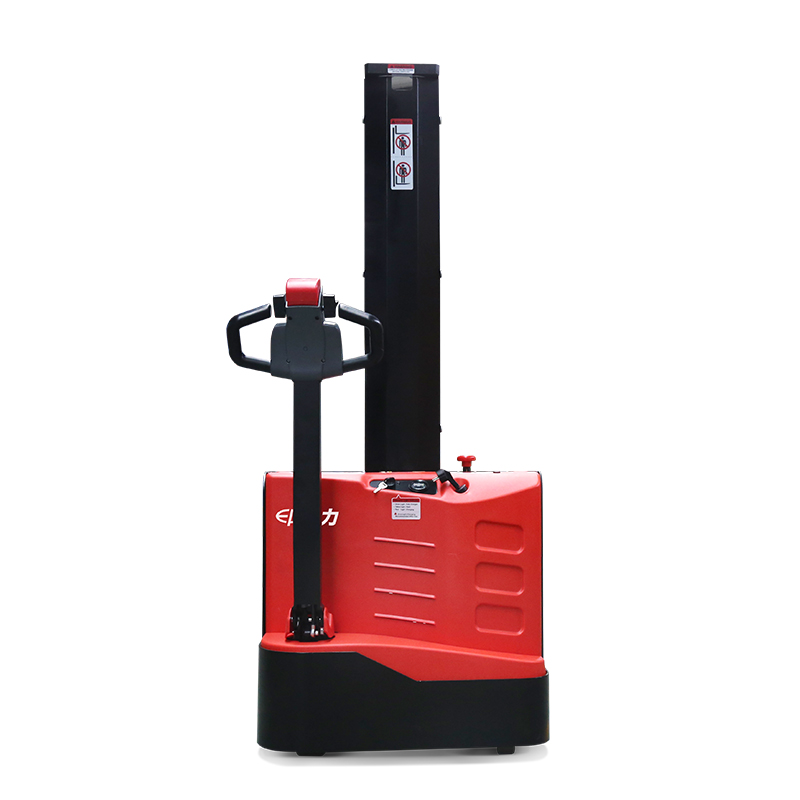

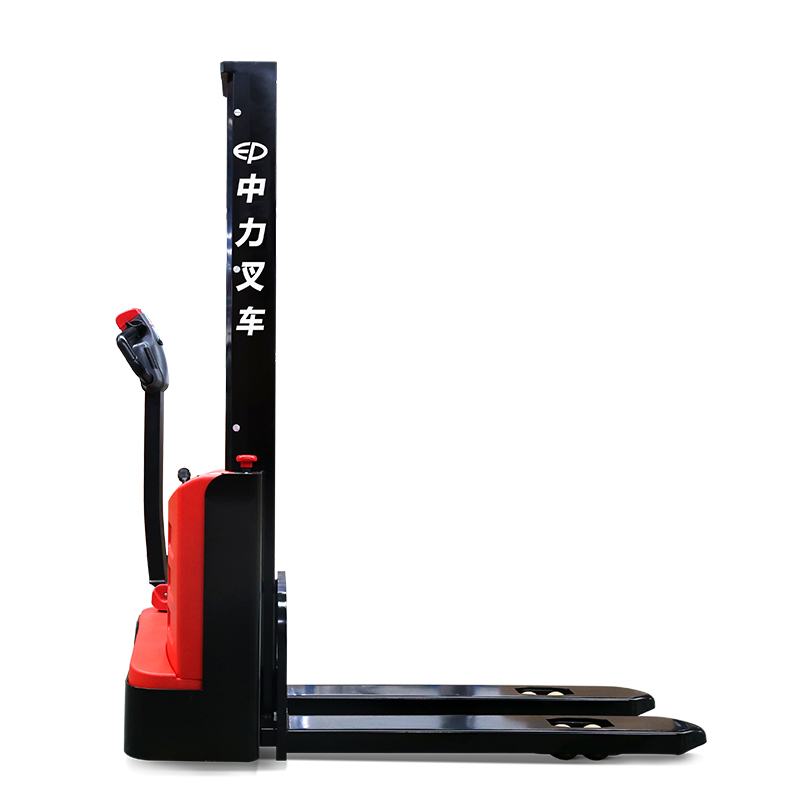

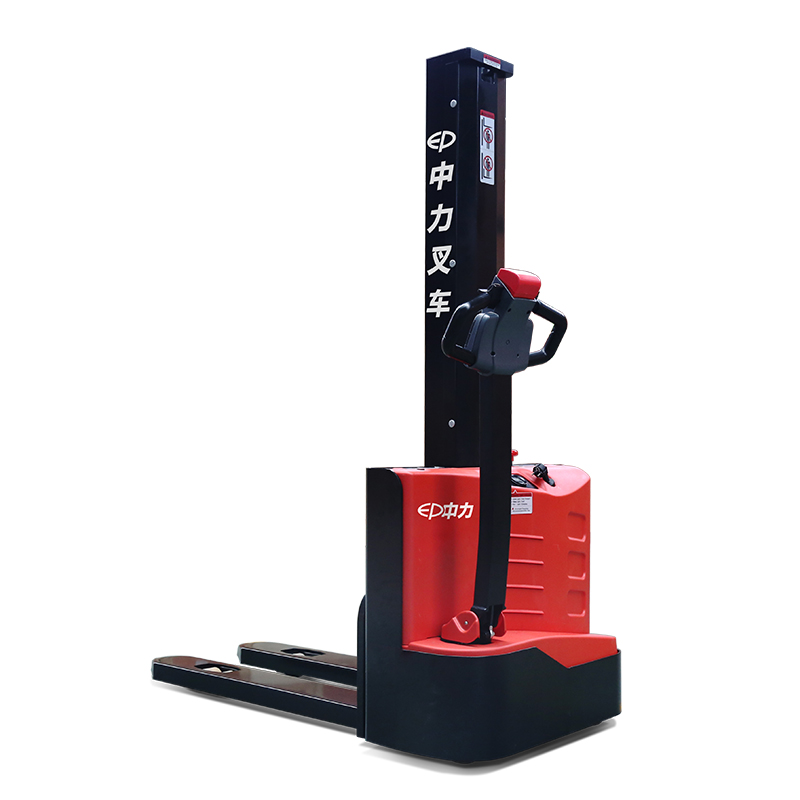

Electric stacker with ultra small workspace in the industry;
Innovative design with low consumption and high reliability;
Long handle and offset operation, convenient and safe;
Electric stacker with ultra small workspace in the industry;
Innovative design with low consumption and high reliability;
Long handle and offset operation, convenient and safe;
| 1.1 | brand | Zhongli | Zhongli | |
| 1.2 | model | ES10-10MM | ES12-12MM | |
| 1.3 | Power type | electric | electric | |
| 1.4 | Operation Type | Walking | Walking | |
| 1.5 | Load Rated | Q (kg) | 1000 | 1200 |
| 1.6 | Load center distance | c (mm) | 600 | 600 |
| 2.1 | Self-weight (including battery) | kg | 462 | 462 |
| 4.2 | The lowest height of the gantry after the drop | H1 (mm) | 1940 | 1940 |
| 4.4 | Standard maximum lifting height of gantry | h3 (mm) | 1517 | 1517 |
| 4.15 | The height of the fork after it drops | h13(mm) | 88 | 88 |
| 4.19 | The length of the whole vehicle | l1 (mm) | 1615 | 1615 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 | 800 |
| 4.25 | Forks with width | b5 (mm) | 550 | 550 |
| 4.34.1 | Right angle stacking channel width (pallet is 1000 length × 1200 width) | Ast (mm) | 2137 | 2137 |
| 4.34.2 | Right angle stacking channel width (pallet is 800 width x 1200 length) | Ast (mm) | 2062 | 2062 |
| 4.35 | Turning radius | Wa (mm) | 1295 | 1295 |
| 5.1 | Walking speed, full load/no load | km/ h | 4/4.5 | 4/4.5 |
| 5.2 | Lift speed, full load/no load | m/ s | 0.12/0.22 | 0.12/0.22 |
| 6.4 | Battery voltage/nominal capacity | V/ ah | 2*12V/85Ah | 2*12V/85Ah |
Fill your requirements here, and we'll send the custmized solution and quotation to you by the reserved contact information.
