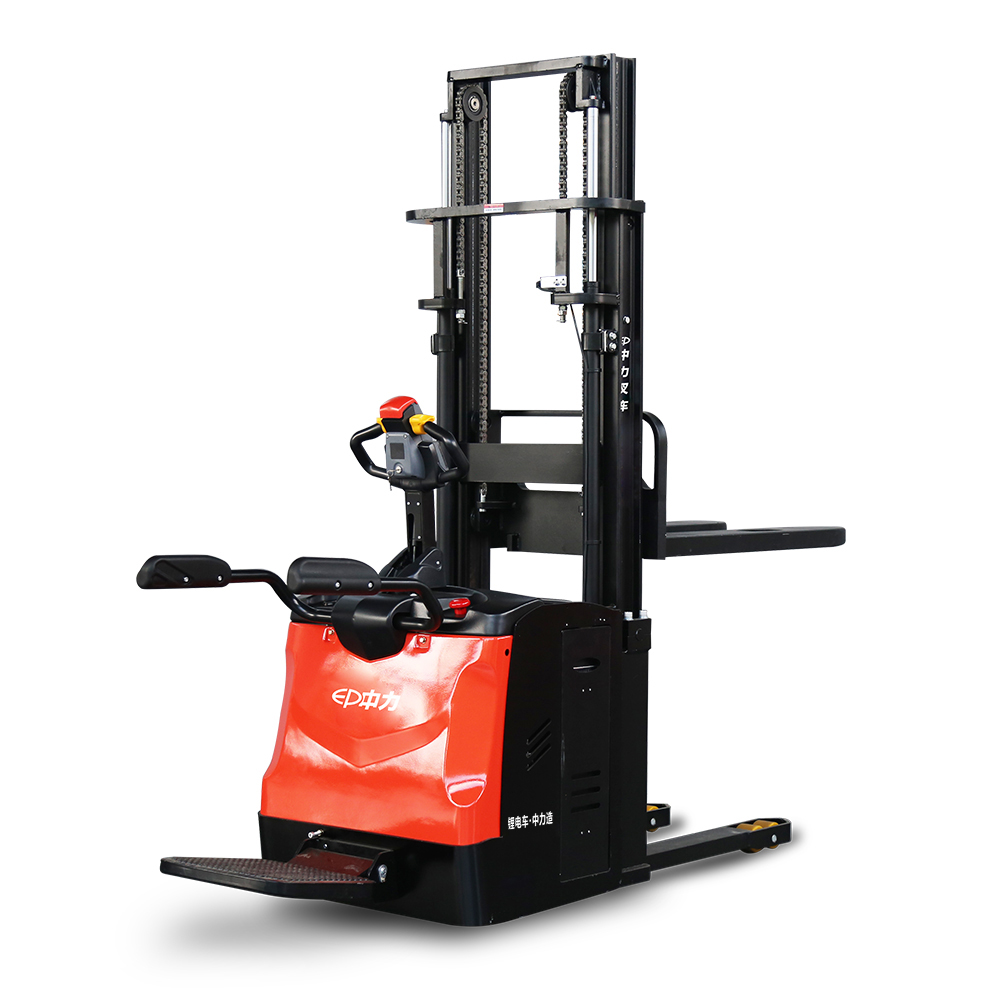

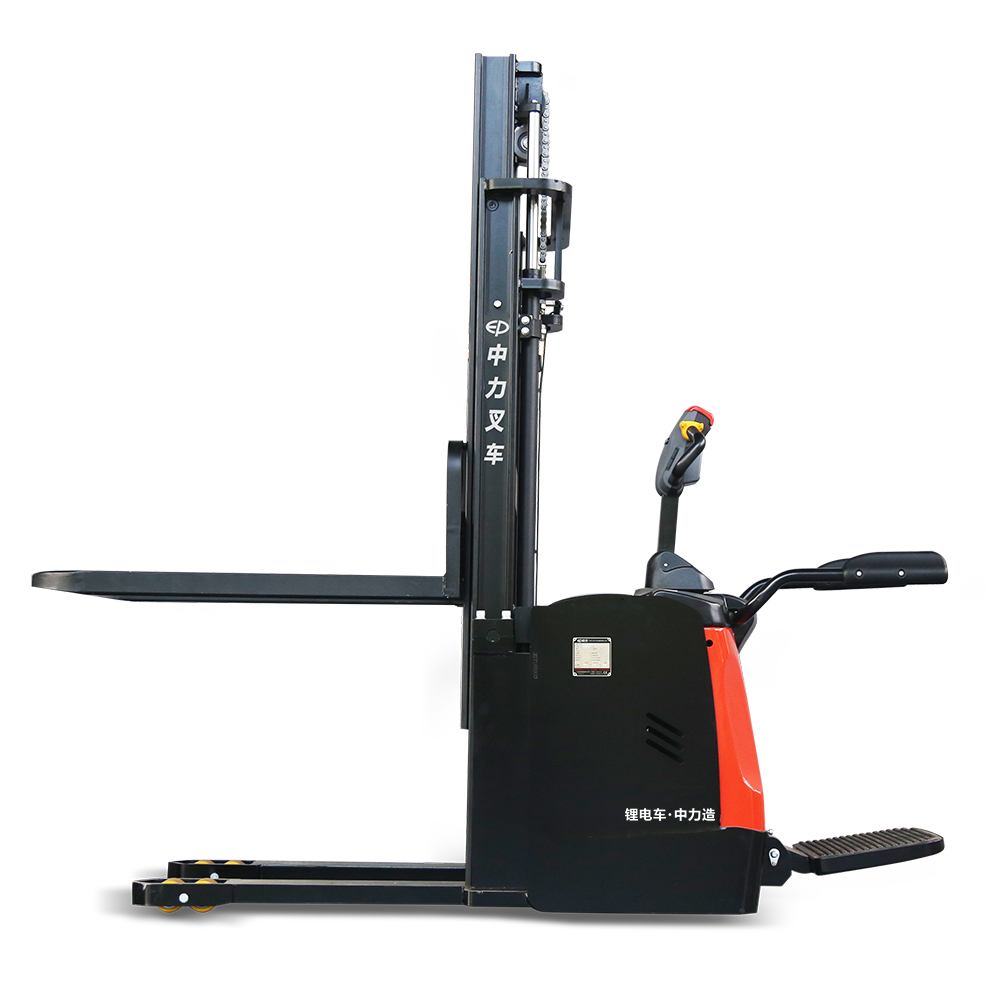

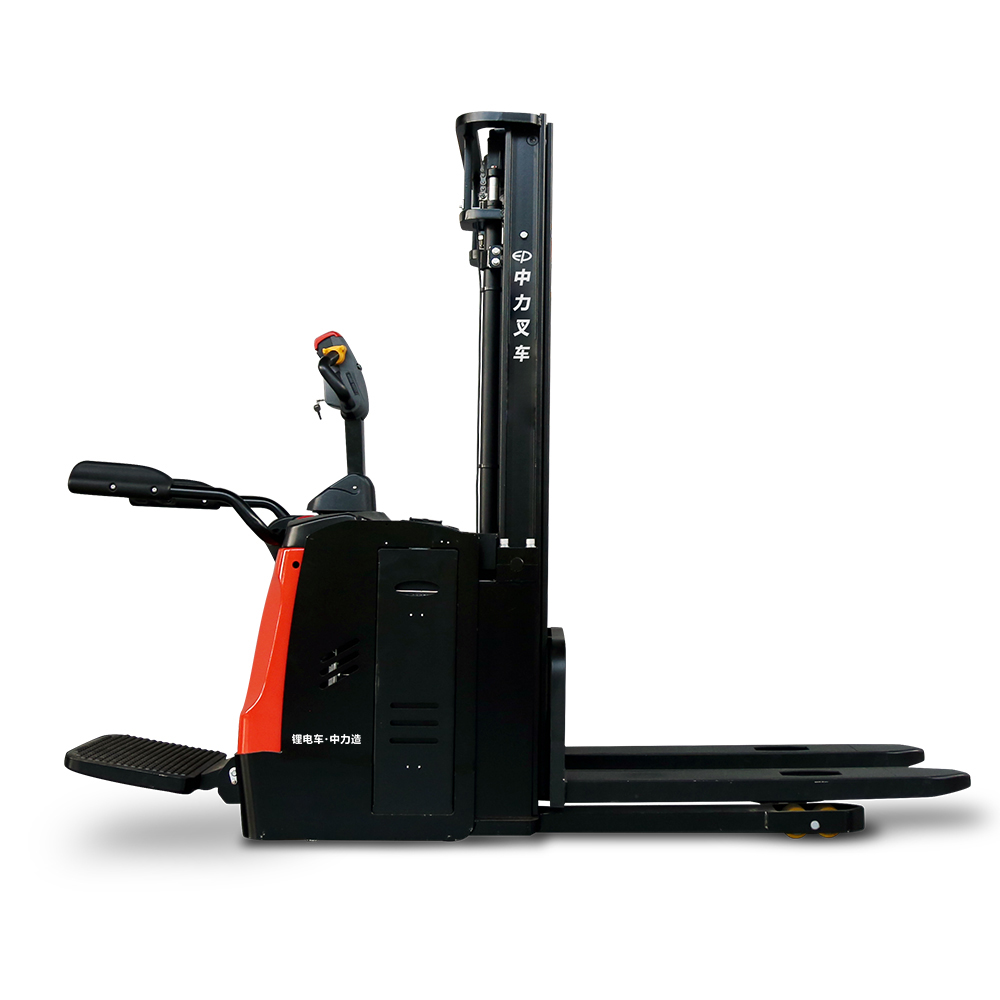

ES16-16RAS
Based on domestic globalization, with a broad vision
The choice of high-strength and high stacking;
Ultra high strength structure, capable of achieving high-level stacking;
Pedal arm protection and electric steering options are available for safe and easy long-term operation;
The choice of high-strength and high stacking;
Ultra high strength structure, capable of achieving high-level stacking;
Pedal arm protection and electric steering options are available for safe and easy long-term operation;
| 1.1 | brand | Zhongli | |
| 1.2 | model | ES16-16RAS | |
| 1.3 | Power type | electric | |
| 1.4 | Operation Type | Station driving style | |
| 1.5 | Load Rated | Q (kg) | 1600 |
| 1.6 | Load center distance | c (mm) | 600 |
| 2.1 | Self-weight (including battery) | kg | 1330 |
| 4.2 | The lowest height of the gantry after the drop | H1 (mm) | 2020 |
| 4.4 | Standard maximum lifting height of gantry | h3 (mm) | 2912 |
| 4.15 | The height of the fork after it drops | h13(mm) | 88 |
| 4.19 | The length of the whole vehicle | l1 (mm) | 2035 |
| 4.21 | Overall width | b1/ b2 (mm) | 850 |
| 4.25 | Forks with width | b5 (mm) | 570 |
| 4.34.1 | Right angle stacking channel width (pallet is 1000 length × 1200 width) | Ast (mm) | 2610/2971 |
| 4.34.2 | Right angle stacking channel width (pallet is 800 width x 1200 length) | Ast (mm) | 2580/2941 |
| 4.35 | Turning radius | Wa (mm) | 1738/2099 |
| 5.1 | Walking speed, full load/no load | km/ h | 5.5/6.0 |
| 5.2 | Lift speed, full load/no load | m/ s | 0.13/0.16 |
| 6.4 | Battery voltage/nominal capacity | V/ ah | 24/280 |
